PASCHAL - The German Formwork Improving Construction In India

PASCHAL was founded in 1964 in Steinach in the Black forest/West Germany, whose inhabitants are known for innovations, accuracy and sense of quality. PASCHAL, an ISO 9001:2000 company currently serves several satisfied construction companies in 60 countries. Overwhelming request from prospective customers in India persuaded to the company to start operations in India. The technical support is located at Jubilee Hills, Hyderabad and manufacturing unit at Visakhapatnam. The company has successfully launched its first product Modular Panel, assembled in India in April 2010 and gained very quick response from the market because of its user friendliness.

Modular Panel System

PASCHAL modular formwork systems are of various panel sizes. The panels are strong and durable, being manufactured of 6 mm-thick high quality sturdy steel which do not corrode. Surface of these panels are covered by high quality Finnish Birch plywood (density 780 kg/cum) with a phenolic resin coating. The edges of the plywood are protected by steel frame and the gap between frame and surface is filled with a special joint filling agent. Hence, the panel’s plywood can be re-used up to 250 times (approx.) and the steel frame will remain for 20 years. The efficient use of modular form work can speed up the superstructure by 3 times compared to the traditional form work system.

Track Hopper

Shear Walls

Columns

Well Pads

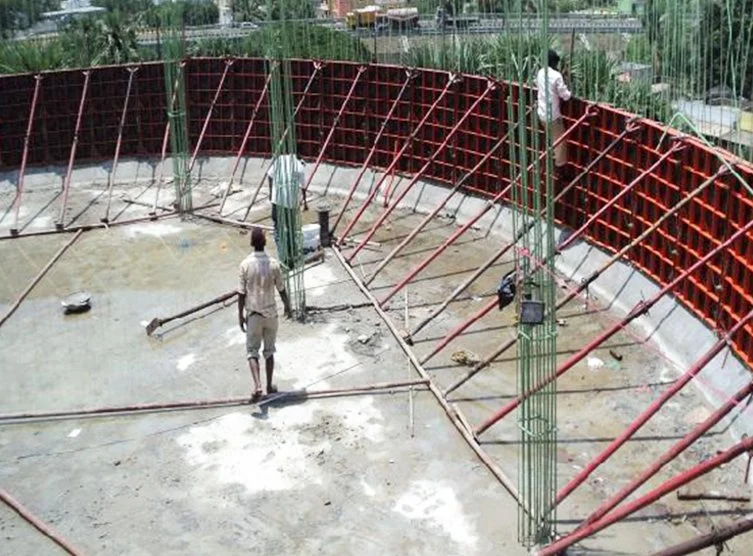

Circular Wall

Features

  • German technology and quality

  • Complete form work solution

  • Panel system- various sizes

  • PASCHAL I-dent (RFID) a unique feature, a compatible solution for logistics

  • Most durable and environment friendly

  • Just one connection technique

Advantages

Lift shafts

  • Versatile, flexible and unique

  • Self-alignment – precise dimensions

  • Quick adaptability

  • User friendly- easy erection and dismantling

  • Smooth finish-plastering can be avoided

PASCHAL’s modular system is a multipurpose system which can be used in reality sector as well as infrastructure sector. In a building project, the system can be used from footing, plinth beam, columns, walls, roof beam and lift shafts. The system is used wherever the concrete pouring is done.

The beauty is that, only one system is used in overall project. It is compatible with the traditional system wherever required so, the typical Indian style of ‘this as well as that’ also works with the system. The system is also used in many infrastructure projects like power projects for Track Hoppers, RCC walls etc., irrigation projects for canal drains, box culverts, water treatment plants and reservoirs etc.

PASCHAL Deck System for Slab with H- Girder

Available: H-12/16/20

PASCHAL deck is a flexible slab formwork for any type of slabs. The three main components are - Ply Wood - H 20 Girder - Props

This system is ideal for use with different slab thickness. The H-20 Girder are used as main girders to support the cross girders, So that the same parts can be used in both directions. The system is flexible with ability to adapt to various different room sizes. It has the various lengths as per the requirement.

The Main Advantages

  • Less number of connections

  • Flexible adjustment to every layout

  • Optimum use of material

  • Always the same assembly sequence

  • Low material cost

‘e-deck’ - PASCHAL’s New Concept For Slab

PASCHAL has the new steel panel slab system ‘e-deck’. These panel frame consists of profiled steel with a height of only 7.5cm, and the facing consists of 9 layer, 12mm thick Birch plywood. These panels are light in weight, weighting less than 20kg, hence leading to better workmanship and high productivity. The system doesn’t require a crane facility and can be handed manually.

High flexibility and efficiency combined with occupied safety are the key competitive factor in the present day concrete construction industry. Our new development, the modular slab formwork ‘e-deck’ is tailored to the requirements and also provides the well established, durable manufacturing quality of PASCHAL.

‘E-deck’ is a user friendly system for slab. It is an easy erection and dismantling system helps in handling our slab requirements. As said ‘e-deck’ system is used for the slabs, which is the main structural (horizontal) component of the building (slab thickness up to 30cm). It can be widely used in building sector.

The benefits of this system are:

  • Flexible - Highly adaptable

  • User friendly-easy erection

  • Can be used without crane availability

The individual panels have the panel dimensions 60x120, 30x120, 60x90, 60x60 and 30x60 etc. making the system adapted for every 5cm for every kind of room architecture.

PASCHAL also provides its service after material delivery by facilitating onsite training.

RFID Technology: Since 2003, the formwork specialist, PASCHAL-Werk G. Maier GmbH has resorted to a new territory of development and designed the system PASCHAL-I dent. PASCHAL uses this system consequently and successfully since 2008.

During manufacturing PASCHAL integrates the transponder chips in formwork elements of Modular Universal Formwork and LOGO.3 Formwork. Each individual transponder installed in the element is provided with a globally unique identification number. At present, the i-dent system from PASCHAL is unique in the branch of industry.

The i-dent system helps in maintaining the inventory and logistics.

Refurbishment Facility

Being a German based company PASCHAL has set up its factory in Vishakhapatnam to support the customers by proving with refurbishment facility for effectively using the Paschal products to its full extent. The Steel frame used in the Paschal Modular system remains for 20 years, thus only the plywood need to be refurbished after the maximum repetition been achieved and also saves the customers formwork’s costing with more repetitions by refurbishment.

For further information,
visit: www.paschalindia.com
